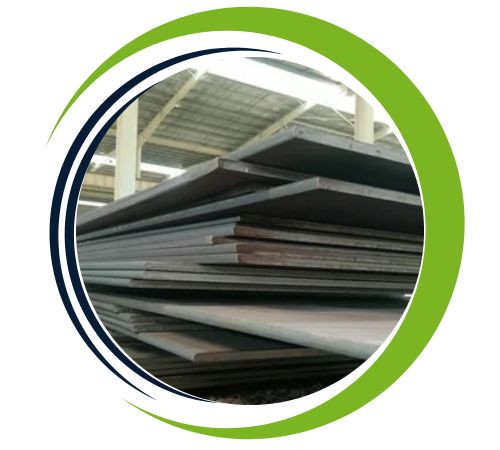

In the industrial heart of Amman, Nizar Sheetsandplates has built a reputation as a trusted partner for demanding projects. We specialize in providing high-grade Boiler Quality Sheet and Plates, materials engineered for resilience under extreme conditions. Our commitment goes beyond supply; we focus on understanding the precise needs of our clients, ensuring they receive not just a product, but a reliable component that forms the foundation of safety and efficiency in their most critical applications, right here in Jordan and beyond.
Boiler Quality sheets and plates are defined by their specific composition and mechanical integrity. They are typically crafted from fine-grained steels, often carbon or carbon-manganese grades, which are meticulously controlled for purity and homogeneity. This results in exceptional tensile strength and superior notch toughness, even at elevated temperatures. Their enhanced resistance to corrosion and oxidation is crucial, ensuring they can withstand the relentless stress and thermal cycling inside a boiler without compromising their structural integrity over time.
| Thickness | 3 mm to 200 mm |
| Width | 1250mm to 4000mm |
| Length | Up to 20,000 mm |
| Certification | DUAL CERTIFICATION [SA 516 GR. 60 / 70] TRIPLE CERTIFICATION. [SA 516 GR. 60 / 65 / 70] IBR AND NON IBR |
| Carbon | Manganese | Sulpher maximum | Phosphorus max | Silicon maximum | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 100 MM < t ≤ 200 MM | t < 200 MM | 12.5 MM < t =50 MM | t < 12.5 MM | 50 MM < t ≤ 100 MM | t 12s.5 MM | t < 12.5 MM | ||||
| A516 Gr 55 | 0.24 | 0.26 | 0.2 | 0.18 | 0.22 | 0.55-0.98 | 06-09 | 0.035 | 0.035 | 0.15-0.4 |
| A516 Gr 60 | 0.27 | 0.27 | 0.23 | 0.21 | 0.25 | 0.85-1.2 | 06-09 | 0.035 | 0.035 | 0.15-0.4 |
| A516 Gr 65 | 0.29 | 0.29 | 0.26 | 0.24 | 0.28 | 0.85-1.2 | 0.85-1.2 | 0.035 | 0.035 | 0.15-0.4 |
| A516 Gr 70 | 0.31 | 0.31 | 0.28 | 0.27 | 0.3 | 0.85-1.2 | 0.85-1.2 | 0.035 | 0.035 | 0.15-0.4 |
| Tensile strength (MPa) | Yield strength (MPa) | Tensile strength (ksi) | Elongation in 200 MM(%) | Yield strength (ksi) | Elongation in 50 MM(%) | |
|---|---|---|---|---|---|---|
| A516 Gr 55 | 55-75 | 380-515 | 30 | 205 | 23 | 27 |
| A516 Gr 60 | 60-80 | 415-550 | 32 | 220 | 21 | 25 |
| A516 Gr 65 | 65-85 | 450-585 | 35 | 240 | 19 | 23 |
| A516 Gr 70 | 70-90 | 485-620 | 38 | 260 | 17 | 21 |
| Material # | DIN 17155 | EN 10028-2 | ASTM | BS 1501 | JIS G3115 |
| 1.0425 | HII | P265GH | A 414 Gr. E / A 516 Gr. 60 | 161 Gr. 400 / 164 Gr. 400 / 224 Gr. 400 | |
| 1.0345 | HI | P235GH | A 285 Gr. C-A 414 Gr. C / A 516 Gr. 55 | 161 Gr. 360 / 164 Gr. 360 | SPV 24 |
| 1.0473 | 19 Mn 6 | P355GH | A 414 Gr. G | SPV 36 | |
| 1.7383 | 11CrMo9-10 | ||||
| 1.0481 | 17 Mn 4 | P295GH | A 414 Gr. F / A 516 Gr. 65 | 224 Gr. 490 | SPV 32 |
| 1.7335 | 13CrMo 4 4 | 13CrMo4-5 | A 387 Gr. 12 | 620 Gr. 27 | |
| 1.5415 | 15 Mo 3 | 16Mo3 | A 204 Gr. B | 1503 – 243 B | |
| 1.738 | 10CrMo 9 10 | 10CrMo9-10 | A 387 Gr. 22 | 622 Gr. 31 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Boiler Quality Sheets and Plates offer several advantages, including exceptional strength and durability, making them ideal for high-pressure and high-temperature applications. They are highly resistant to thermal fatigue, corrosion, and oxidation, ensuring a longer service life. These materials are specifically designed for use in boilers, pressure vessels, and heat exchangers, where safety and reliability are paramount. They also provide excellent weldability, formability, and ease of fabrication, making them versatile and dependable for critical applications.
| Size (Length x width) | Thickness mm | Size (Length x width) | Thickness mm | Size (Length x width) | Thickness mm |
|---|---|---|---|---|---|
| 2055 x 12100 | 8 | ||||
| 2500 x 12000 | 3000 x 12000 | ||||
| 2055 x 12000 | 20 | 2500 x 12000 | 3000 x 6000 | 60 | |
| 3000 x 12000 | 3460 x 14000 | 3000 x 6000 | 65 | ||
| 3460 x 14000 | |||||
| 2055 x 12100 | 18 | 2055 x 12100 | 6 | 2055 x 8000 | 50 |
| 3000 x 12000 | 3000 x 12000 | ||||
| 2500 x 12000 | 2500 x 12000 | 3000 x 9000 | |||
| 3460 x 14000 | 3000 x 6000 | 55 | |||
| 4000 x 12000 | 2055 x 12100 | 12.5 | 3000 x 4000 | 90 | |
| 2500 x 12000 | 3460 x 14000 | ||||
| 2055 x 12000 | 25 | 3000 x 12000 | 3000 x 4000 | 100 | |
| 2500 x 12000 | |||||
| 3460 x 14000 | 4000 x 12000 | ||||
| 4000 x 12000 | |||||
| 4000 x 12000 | 2055 x 12100 | 10 | 3000 x 6000 | 70 | |
| 3000 x 12000 | 4000 x 12000 | 3000 x 6000 | 80 | ||
| 2055 x 12100 | 22 | 3000 x 12000 | 3000 x 6000 | 75 | |
| 2500 x 12000 | |||||
| 2500 x 12000 | 3460 x 14000 | ||||
| 3460 x 14000 | |||||
| 2500 x 12000 | 2055 x 12100 | 15 | |||
| 2500 x 10000 | 4000 x 12000 | ||||
| 3000 x 12000 | |||||
| 3000 x 10000 | 2500 x 12000 | ||||
| 2055 x 12000 | 40 | 3460 x 14000 | |||
| 3000 x 10000 | |||||
| 2055 x 12100 | 13 | ||||
| 4000 x 12000 | 3460 x 14000 | ||||
| 2500 x 12000 | 3000 x 12000 | ||||
| 2055 x 12000 | 30 | 2500 x 12000 | |||
| 4000 x 12000 | |||||
| 2055 x 12000 | 35 | ||||
| 2055 x 12100 | 16 | ||||
| 4000 x 12000 | |||||
| 2500 x 10000 | 3000 x 12000 | ||||
| 2055 x 8000 | 45 | 2500 x 12000 | |||
| 3000 x 9000 | 3460 x 14000 |
The primary use for this specialized material is, as the name implies, in the construction of boilers and pressure vessels for power generation and industrial plants. You will also find it essential for fabricating storage tanks that hold hazardous or high-pressure materials. Beyond these core applications, its reliable strength makes it a preferred choice for heavy-duty mining equipment, structural components in large-scale construction, and any machinery part that must perform flawlessly under consistent stress and heat.
