Nestled in the industrial heart of Amman, Jordan, Nizar Sheetsandplates has built a reputation for excellence as a trusted manufacturer and supplier of high-grade metals. We take particular pride in our range of Duplex Steel Sheet and Plates, materials engineered for those who cannot compromise on performance. Understanding the demanding environments our clients operate in, we provide products that deliver exceptional strength and resilience, making them a cornerstone for critical projects across the region and beyond.
What truly sets duplex steel apart is its unique two-phase microstructure, which combines the best qualities of austenitic and ferritic steels. This gives our sheets and plates an outstanding strength-to-weight advantage, along with impressive toughness. They boast excellent resistance to a wide range of corrosive threats, including stress corrosion cracking, making them far more durable than standard stainless steels in challenging conditions where both strength and corrosion resistance are non-negotiable.
| Specifications | ASTM A240 / ASME SA 240 |
| Duplex Steel Plate Grades | 2205, 2507 |
| Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Thickness | 0.1mm to 12 mm Thk |
| Width | 10-2500mm |
| Length | 2m,2.44m, 3m as per requirement |

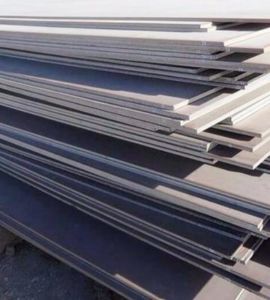

| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange) |

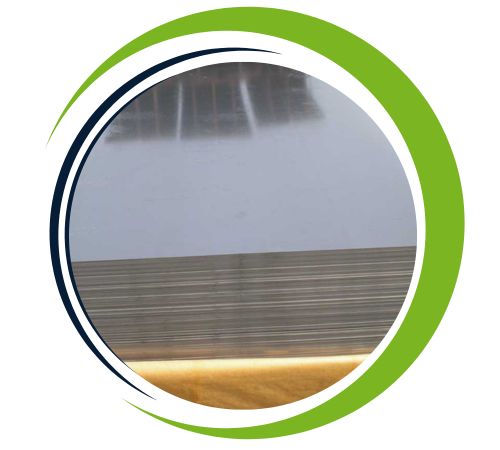

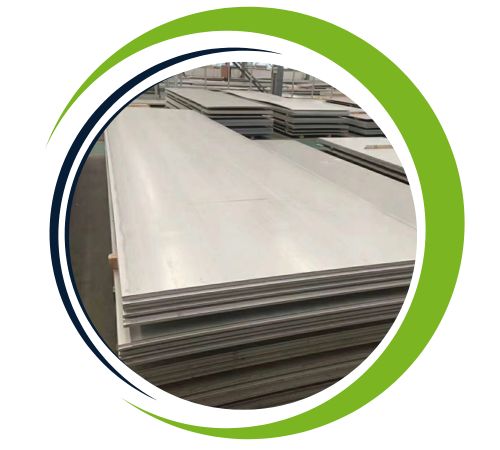

| Finish | Cold rolled sheet (CR), Hot rolled plate (HR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| MN | C | SI | S | P | CR | NI | MO | N |
|---|---|---|---|---|---|---|---|---|
| 2.0 max | 0.03 max | 1.0 max | 0.02 max | 0.03 max | min: 21.0 max: 23.0 | min: 4.5 max: 6.5 | min: 2.5 max: 3.5 | min: 0.08 max: 0.20 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Duplex Steel Sheets and Plates offer numerous advantages, including superior strength, high resistance to corrosion, and exceptional durability in aggressive environments. The combination of austenitic and ferritic microstructures provides enhanced resistance to stress corrosion cracking, pitting, and crevice corrosion. They are known for their high tensile strength, which makes them ideal for high-pressure and high-temperature applications. Additionally, Duplex Steel offers excellent weldability and formability, making it suitable for a wide range of industries, including oil and gas, chemical, marine, and structural applications. Its cost-effectiveness further adds to its appeal.
| Thickness (mm) | Length x width (mm) | Length x width (mm) | Length x width (mm) | Length x width (mm) | Length x width (mm) |
| 5 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 6 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 8 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 10 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 12 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 15 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 16 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 20 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 25 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 30 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 35 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 40 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 45 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 50 | 4000 x 2000 | 6000 x 2000 | 6000 x 2500 | 6000 x 3000 | 8000 x 2000 |
| 60 | 4000 x 2000 | ||||
| 70 | 4000 x 2000 | ||||
| 80 | 4000 x 2000 | ||||
| 90 | 4000 x 2000 | ||||
| 100 | 4000 x 2000 |
| Surface finish | Thickness (mm) | Width (mm) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed | 0.25–8.0 | max. 2032 |
| 2D – Cold rolled, heat treated, pickled | 0.4–6.35 | max. 1524 |
| 2E – Cold rolled, heat treated, mechanically descaled | 0.4–8.0 | max. 2032 |
| 2R – Cold rolled, bright annealed | 0.25–3.5 | max. 1524 |
| 2H – Work hardened | 0.4–6.35 | max. 1524 |

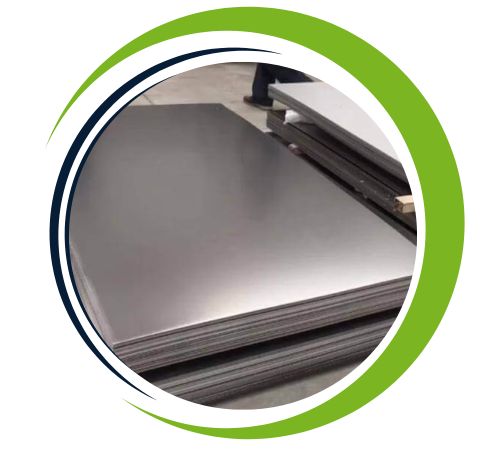

| Polished, brushed | 0.5–4.0 | max. 1524 |
The remarkable properties of duplex steel make it the material of choice for a diverse array of challenging applications. You’ll find our sheets and plates at work in the demanding environments of chemical processing plants, oil and gas pipelines, and desalination units where saltwater is a constant foe. They are also essential in the construction of marine structures, pulp and paper manufacturing, and architectural projects that require both a modern aesthetic and long-lasting durability in harsh climates.
