Incoloy 800/800H/800HT Sheets and Plates

Nestled in the industrial heart of Amman, Jordan, Nizar Sheetsandplates has built a reputation as a trusted partner for robust industrial materials. We take pride in specializing in the supply of high-performance Incoloy 800, 800H, and 800HT sheets and plates, providing essential components for the region’s most demanding sectors. Our commitment is to deliver not just metal, but reliability and endurance, ensuring your projects are supported by materials capable of withstanding extreme conditions. We focus on building lasting relationships through consistent quality and dedicated service.

Incoloy 800 Sheets Dealer in Zarqa, Incoloy 1.4876 Plates Supplier in Zarqa, Incoloy 800H Sheets in Wadi Al Seer, 800 Incoloy Plates Size Chart, Incoloy 800HT Sheet Price in Irbid, Incoloy N08800 Plates Supplier in Jordan, 800HT Incoloy Sheet Stockist in Russeifa, 800 Incoloy Alloy Sheets and Plates Exporter in Jordan, Incoloy 800 Sheet Stockist in Amman, 800H Incoloy Plates Supplier in Russeifa

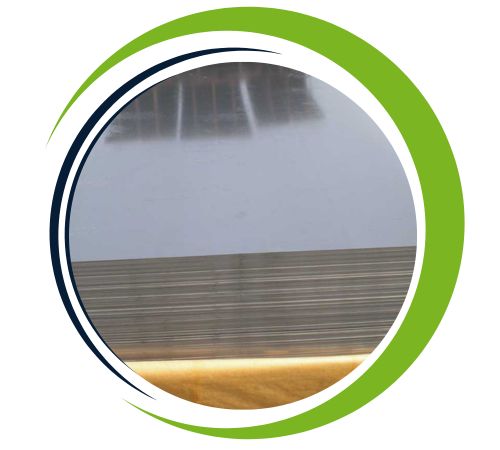

Incoloy 800H Cold Rolled Plates

Incoloy 800HT Hot Rolled Plates

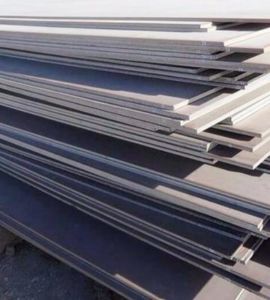

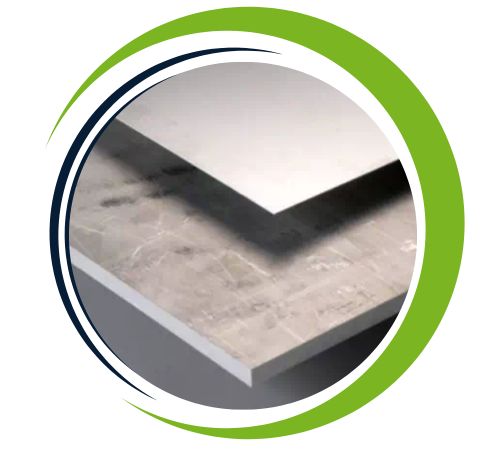

Incoloy 800 Clad Sheets and Plate

The strength of these Incoloy alloys comes from a carefully balanced composition rich in nickel, iron, and chromium, with strategic additions of aluminum and titanium. This chemistry provides exceptional resistance to oxidation and carburization, especially in high-heat environments. The series offers a range of mechanical properties tailored for specific service temperatures, with the 800H and 800HT grades providing enhanced creep rupture strength for long-term structural integrity under sustained thermal stress, making them significantly tougher than standard alloys.

Incoloy 800/800H/800HT Sheets and Plates Specification

Specifications:	ASTM / ASME SB 168, ASTM / ASME SB 424 , ASTM / ASME SB 443
Thickness:	4 mm To 100 mm
Length:	2000mm, 2438mm, 3000mm, 5800mm, 6000mm,12000mm，or as required
Width:	40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm,or as required
Grade	800/ 800H/ 800HT/ 825
Application	Building industry,architectural decoration,elevators,building doors,panels and so on.
Standard:	ASTM，AISI，JIS，GB， DIN，EN
Surface:	BA，2B，NO.1，NO.4，4K，HL，8K
Certification:	ISO, SGS，BV
Technique:	Cold Rolled Hot Rolled
Finish	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form	Sheets, Plates, Coils, Slatting Coils, Perforated Coils

Incoloy 800/800H/800HT Sheets and Plates Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
Incoloy 800	0.10 max	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30 – 35	19 – 23	0.15 – 0.60	0.15 – 0.60
Incoloy 800H	0.05 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30 – 35	19 – 23	0.15 – 0.60	0.15 – 0.60
Incoloy 800HT	0.06 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30 – 35	19 – 23	0.15 – 0.60	0.15 – 0.60

Incoloy 800/800H/800HT Sheets and Plates Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
7.94 g/cm3	1385 °C (2525 °F)	Psi – 75,000 , MPa – 520	Psi – 30,000 , MPa – 205	30 %

Equivalent Grades for 800/800H/800HT Incoloy Sheet and Plates

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 800	1.4876	N08800	NCF 800	NA 15	ЭИ670	Z8NC32-21	X10NiCrAlTi32-20	XH32T
Incoloy 800H	1.4958 / 1.4876	N08810	NCF 800H	NA 15(H)	ЭИ670	Z8NC33-21	X5NiCrAlTi31-20	XH32T
Incoloy 800HT	1.4859 / 1.4876	N08811	NCF 800HT	NA 15(HT)	ЭИ670	–	X8NiCrAlTi32-21	XH32T

800H Incoloy Sheets Price in Irbid, 800HT Incoloy Hot Rolled Weight Chart, Incoloy N08810 Cold Rolled Supplier in Jordan, Stockist of Incoloy 800H Alloy Cold Rolled Sheets in Russeifa, 800HT Incoloy Perforated Sheet Supplier in Jordan, Incoloy 800HT Perforated Plates Price List in Amman, Alloy 800 Perforated Plates Supplier in Russeifa, Incoloy 800HT Chequered Plates Exporter in Zarqa, Incoloy 1.4958 Polished Plates Exporter in Jordan, 800HT Incoloy Perforated Plates Exporter in Wadi Al Seer, 800HT Incoloy Sheet and Plate in Irbid

Weight Chart of 800/800H/800HT Incoloy Alloy Sheets and Plates

Thickness	Plate Weight per Unit Area	Density
3/16 inches	0.06000 lbs/in²42.184176 kg/m²	0.315 lbs/in³8.72 g/cm³
1/4 inches	0.08 lbs/in²56.245568 kg/m²	0.315 lbs/in³8.72 g/cm³
3/8 inches	0.121 lbs/in²85.0714216 kg/m²	0.315 lbs/in³8.72 g/cm³
1/2 inches	0.161 lbs/in²113.1942056 kg/m²	0.315 lbs/in³8.72 g/cm³
5/8 inches	0.196 lbs/in²137.8016416 kg/m²	0.315 lbs/in³8.72 g/cm³
3/4 inches	0.235 lbs/in²165.221356 kg/m²	0.315 lbs/in³8.72 g/cm³
7/8 inches	0.274 lbs/in²192.6410704 kg/m²	0.315 lbs/in³8.72 g/cm³
1 inches	0.313 lbs/in²220.0607848 kg/m²	0.315 lbs/in³8.72 g/cm³
1 1/4 inches	0.391 lbs/in²274.9002136 kg/m²	0.315 lbs/in³8.72 g/cm³
1 1/2 inches	0.47 lbs/in²330.442712 kg/m²	0.315 lbs/in³8.72 g/cm³
1 3/4 inches	0.549 lbs/in²385.9852104 kg/m²	0.315 lbs/in³8.72 g/cm³
2 inches	0.627 lbs/in²440.8246392 kg/m²	0.315 lbs/in³8.72 g/cm³
2 1/4 inches	0.705 lbs/in²495.664068 kg/m²	0.315 lbs/in³8.72 g/cm³
2 1/2 inches	0.784 lbs/in²551.2065664 kg/m²	0.315 lbs/in³8.72 g/cm³
2 3/4 inches	0.862 lbs/in²606.0459952 kg/m²	0.315 lbs/in³8.72 g/cm³
3 inches	0.941 lbs/in²661.5884936 kg/m²	0.315 lbs/in³8.72 g/cm³

Imperial Dimensions of Incoloy 800/800H/800HT Sheets and Plates

Surface finish	Gauge (in)	Width (in)
2B – Cold rolled, heat treated, pickled, skin passed	10–24	max. 72*
2D – Cold rolled, heat treated, pickled	12–24	max. 60
BA Mexinox only	18–28	max. 48
Polished (not brushed)	11–24	max. 60
Temper rolled Mexinox only	13–29	max. 48

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Incoloy 800/800H/800HT Sheets and Plates Manufacturer and Exporter in Amman, Jordan

Nizar Sheets and Plates based in Amman, Jordan, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

DIN 1.4859 Incoloy Clad Sheets Distributor in Jordan, 800H Incoloy Perforated Plates Supplier in Amman, 800HT Incoloy Perforated Sheet Weight Chart, Incoloy 800 Plate Exporter in Russeifa, 800 Incoloy Polished Sheets Manufacturer in Zarqa, Incoloy 800HT Shim Sheet and Plate Price List in Jordan, 800HT Incoloy Chequered Plates Sizes in mm, Incoloy Alloy 800H Hot Rolled Plate Distributor in Wadi Al Seer, 800H Incoloy Sheets and Plates Irbid

Incoloy 800/800H/800HT sheets and plates provide excellent superior strength, corrosion resistance, and structural stability, making them ideal for heat exchangers, pressure vessels, and chemical applications Their nickel-steel- high temperature chromium system oxidation, carburization, sulfidation and resistance. Incoloy 800H and 800HT have enhanced creep, stress and rupture properties due to high carbon content and controlled titanium/aluminum ratio. Energy is stored at temperatures up to 1100°F (593°C), ensuring longevity. These alloys are also resistant to acidic environments, provide stability under extreme conditions, and are easy to fabricate, weld and machine for mass production.

Types of Incoloy 800/800H/800HT Sheets and Plates

UNS N08811 Incoloy Plates Manufacturer in Zarqa, 800 Incoloy Plates and Sheets Wadi Al Seer, Incoloy 800H Mirror Finish Plates Supplier in Amman, 800HT Incoloy Polished Plates Exporter in Russeifa, Incoloy 800HT Alloy Chequered Plates Price List in Jordan, Incoloy 800H Cold Rolled Plate Distributor in Wadi Al Seer, 800HT Incoloy Clad Plates and Sheets Supplier in Zarqa, Incoloy 800 Sheet and Plate Distributor in Jordan, 800 Incoloy Perforated Plate Sizes in mm

Are Custom Sizes Available for Incoloy 800/800H/800HT Sheets and Plates?

Yes, we offer custom sizes for Incoloy 800/800H/800HT Sheets and Plates to meet specific project needs. Our team at Nizar Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Incoloy 800/800H/800HT Sheets and Plates

You’ll find these versatile sheets and plates at work in critical applications where heat and corrosion are constant challenges. They are essential in constructing industrial furnaces, heat-treating equipment, and radiant tubes. The petrochemical and power generation industries rely on them for components in reformers and heat exchangers. Their excellent performance also makes them a preferred choice in the aerospace sector and for nuclear power systems, proving their worth wherever unwavering performance under intense pressure and temperature is non-negotiable.
