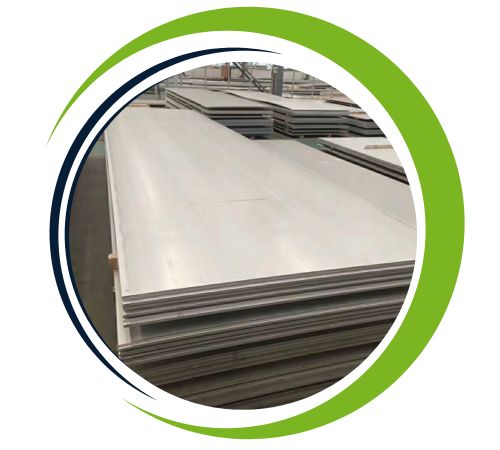

Nizar Sheetsandplates, located in Amman, Jordan, specializes in providing top-notch nickel alloy sheets and plates. These products are celebrated for their outstanding resistance to corrosion, impressive strength, and durability, making them ideal for tough industrial and chemical settings. Each sheet and plate is crafted with meticulous attention to quality and adheres to international standards, ensuring they perform reliably even in high-temperature, acidic, or corrosive conditions. With a variety of thicknesses and dimensions available, Nizar Sheetsandplates guarantees that every nickel alloy sheet and plate boasts consistent mechanical properties, excellent chemical resistance, and long-lasting reliability for critical applications.
The composition of these nickel alloy sheets and plates primarily includes nickel, along with carefully balanced amounts of chromium, molybdenum, iron, copper, and other alloying elements. This blend enhances their corrosion resistance, strength, and thermal stability. As a result, these materials exhibit remarkable tensile and yield strength, fatigue resistance, and the capability to endure harsh chemical environments. They also maintain their shape and stability at elevated temperatures, making them perfect for structural, chemical processing, and high-performance engineering tasks.
| Specification | ASTM B162 UNS N02200, ASME SB162 |
|---|---|
| Sizes | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Thickness | 0.1mm to 100 mm Thk |
| Width | 10-2500mm |
| Length | 2m, 2.44m, 3m, or as required |
| ASTM | ASTM B168 |
| AMS | AMS 5553 |

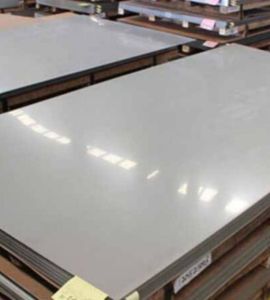

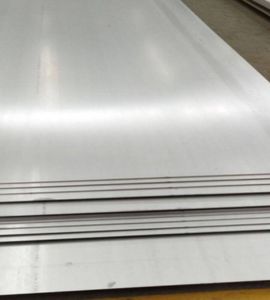

| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |

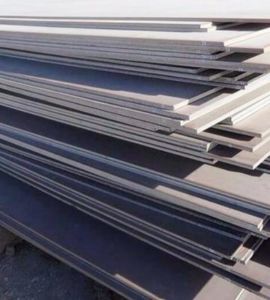

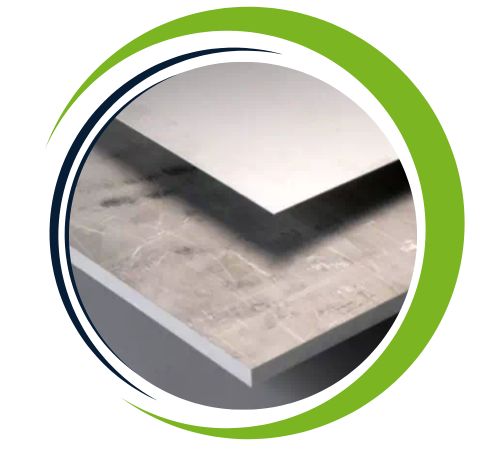

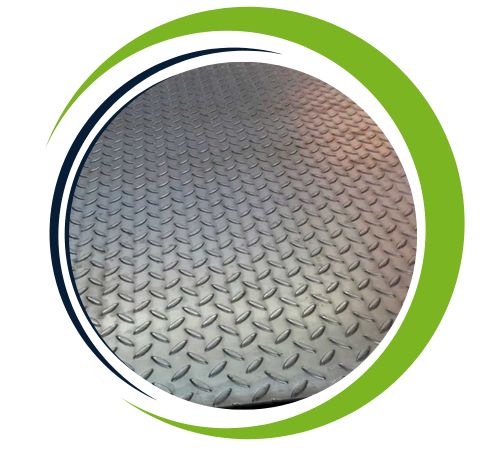

| Stock in form of | Nickel Plate, Sheet, Plain Sheet, Shim Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, hot rolled, cold rolled, annealed, soft annealed, descaled, sheared, tread plate, Checker Plate |
| Material | JIS: N0, N2, N1, NW2200, NW2201, NW4400, NW5500, NW6002, etc DIN:H-Ni99.96, H-Ni99.95, H-Ni99.92, H-Ni99.90, H-Ni99.5, H-Ni99, etc |
| profiling | To provide a full profiling service we use numerous profiling methods including:
|
| Specialized in |
|
| Grade | C | Mn | Si | S | Fe | Ni | Cu |
| Nickel Alloy 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.40 max | 99.0 min | 0.25 max |
| Nickel Alloy 201 | 0.02 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Nickel 200 / 201 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | AFNOR | EN | GOST |
| Nickel 200 | 2.4066 | N02200 | NW 2200 | NA 11 | N-100M | Ni 99.2 | НП-2 |
| Nickel 201 | 2.4068 | N02201 | NW 2201 | NA 12 | НП-2 | LC-Ni 99 | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nickel Alloy Sheets and Plates offer exceptional corrosion resistance, making them ideal for harsh environments. They exhibit high-temperature strength, ensuring performance under extreme heat. Their durability and toughness contribute to long service life, while excellent oxidation resistance enhances reliability. With superior thermal and electrical conductivity, they support versatile industrial applications. Nickel alloys provide stress corrosion cracking resistance, improving structural integrity. These sheets and plates are versatile for various industries, including aerospace, marine, and chemical processing. Additionally, they are easily fabricated, allowing customization for specific project needs.
| Plate Thickness (mm) | Weight (kg/m) | kg/meter (width 1200mm) | kg/meter (width 1500mm) | kg/meter (width 1800mm) | kg/meter (width 2400mm) |
| 3 | 23.55 | 28.3 | 35.3 | 42.4 | 56.5 |
| 4 | 31.4 | 37.7 | 47.1 | 56.5 | 75.4 |
| 5 | 39.25 | 47.1 | 58.9 | 70.7 | 94.2 |
| 6 | 47.1 | 56.5 | 70.7 | 84.8 | 113 |
| 8 | 62.8 | 75.4 | 94.2 | 113 | 150.7 |
| 10 | 78.5 | 94 | 118 | 141 | 188 |
| 12 | 94.2 | 113 | 141 | 170 | 226 |
| 16 | 125.6 | 151 | 188 | 226 | 301 |
| 20 | 157 | 188 | 236 | 283 | 377 |
| 22 | 172.7 | 207 | 259 | 311 | 415 |
| 25 | 196.25 | 236 | 294 | 353 | 471 |
| 28 | 219.8 | 264 | 330 | 396 | 528 |
| 32 | 251.2 | 301 | 377 | 452 | 603 |
| 36 | 282.6 | 339 | 424 | 509 | 678 |
| 40 | 314 | 377 | 471 | 565 | 754 |
| 45 | 353.25 | 424 | 530 | 636 | 848 |
| 50 | 392.5 | 471 | 589 | 707 | 942 |
| 55 | 431.75 | 518 | 648 | 777 | 1036 |
| 60 | 471 | 565 | 707 | 848 | 1130 |
| 65 | 510 | 612 | 765 | 918 | 1224 |
| 70 | 549.5 | 659 | 824 | 989 | 1319 |
| 75 | 588.75 | 707 | 883 | 1060 | 1413 |
| 80 | 628 | 754 | 942 | 1130 | 1507 |
| 90 | 706.5 | 848 | 1060 | 1272 | 1696 |
| 100 | 785 | 942 | 1178 | 1413 | 1884 |
These sheets and plates find extensive use in various applications, including chemical and petrochemical equipment, heat exchangers, pressure vessels, marine components, aerospace parts, and industrial machinery that face aggressive environments. They are particularly valuable in scenarios that demand high corrosion resistance, thermal stability, and superior mechanical performance. Nizar Sheetsandplates provides nickel alloy sheets and plates tailored to precise dimensions and custom specifications, ensuring consistent quality, durability, and long-term performance for industrial, engineering, and specialized applications.
