Nizar Sheetsandplates is a top-notch manufacturer and supplier located in Amman, Jordan, specializing in high-quality Stainless Steel 316 CircleName products tailored for a variety of industrial and commercial applications. Renowned for their precision fabrication, commitment to global standards, and reliable delivery, the company serves sectors like construction, petrochemicals, machinery, and food processing. With a strong emphasis on durability and corrosion resistance, Nizar Sheetsandplates provides custom sizing, competitive pricing, and excellent customer support. Their Stainless Steel 316 CircleName products are designed for demanding applications, making them a go-to choice for long-lasting, high-performance stainless-steel components.
Stainless steel 316 circle is a corrosion resistant alloy made primarily of steel, containing 16-18% chromium, 10-14% nickel and 2-3% molybdenum. The addition of molybdenum enhances the corrosion resistance of chloride, making it more marine and chemically environmentally friendly. Mechanical properties of SS 316 include high tensile strength (515 MPa), yield strength (205 MPa), and elongation (40-50%). It has excellent weldability and formability. This alloy also retains good strength and hardness at high temperatures, making it suitable for high temperature applications. Its pitting and crevice corrosion resistance is exceptional.
| Standard | ASTM A240, ASME SA240 |
| Dimensions | ASTM, ASME and API |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Thickness | 1 Mm To 100 mm. |
| Diameter | Upto 2000 Mm. |
| Circle Diameter | 3″ DIA up to 38″ DIA 1500 lbs max. |

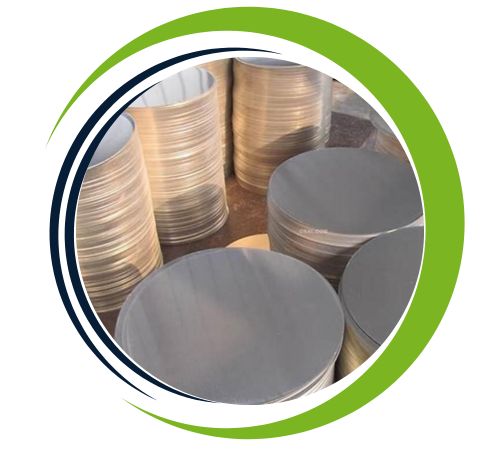

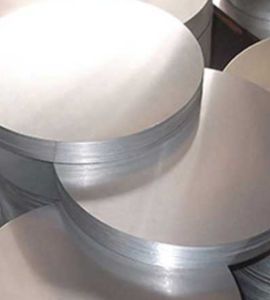

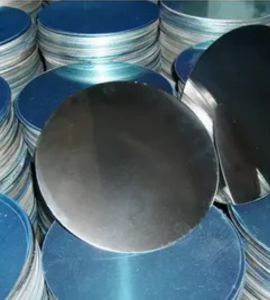

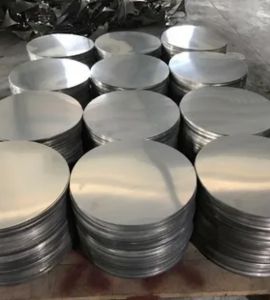

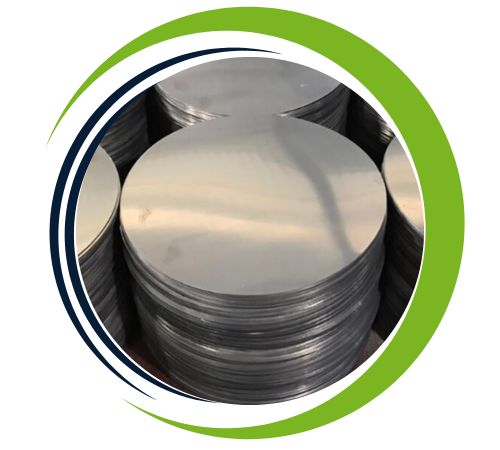

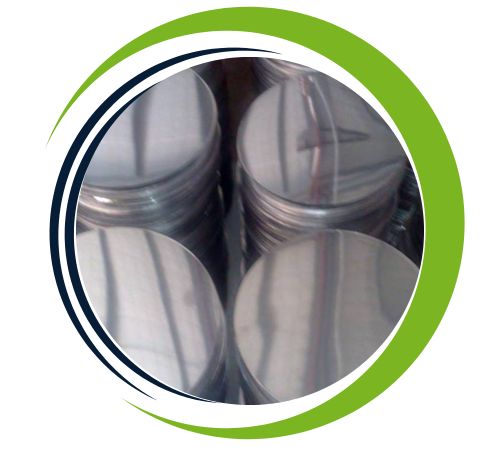

| Circles Form | Cold Rolled, Small Flat, Industrial, Proof Machined, Perforated, Forged Steel, Cnc Finish, Polished Unique, Hot Rolled Circle.. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| Grades | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| Size | 18 G. | 19 G. | 20 G. | 22 G. | 24 G. | 26 G. |
| .4.5 | .0-107 | 0-085 | 0-080 | 0-062 | 0.049 | 0-040 |
| 5 | 0-120 | 0-095 | 0-090 | 0-070 | 0-055 | 0-045 |
| 5.5 | 0-146 | 0-119 | 0-109 | 0-085 | 0-066 | 0-054 |
| 6 | 0-172 | 0-136 | 0-130 | 0-100 | 0-079 | 0-064 |
| 6.5 | 0-200 | 0-153 | 0-150 | 0-128 | 0-093 | 0-074 |
| 7 | 0-235 | 0-190 | 0-176 | 0-136 | 0-107 | 0-088 |
| 7.5 | 0.270 | 0.212 | 0.201 | 0-157 | 0-123 | 0-100 |
| 8 | 0-307 | 0-240 | 0-230 | 0-180 | 0-140 | 0-115 |
| 8.5 | 0-347 | 0-270 | 0-262 | 0-202 | 0-156 | 0-130 |
| 9 | 0-388 | 0-330 | 0-301 | 0-230 | 0-178 | 0-145 |
| 9.5 | 0-472 | 0-342 | 0-324 | 0-252 | 0-198 | 0-162 |
| 10 | 0-480 | 0-380 | 0-360 | 0-280 | 0-220 | 0-180 |
| 11 | 0-580 | 0-450 | 0-435 | 0-338 | 0-266 | 0-218 |
| 12 | 0-690 | 0-540 | 0-518 | 0-403 | 0-318 | 0-253 |
| 13 | 0-811 | 0-640 | 0-508 | 0-608 | 0-371 | 0-304 |
| 14 | 0-940 | 0-750 | 0-708 | 0-558 | 0-430 | 0-352 |
| 15 | 1-080 | 0-860 | 0-808 | 0-650 | 0-495 | 0-405 |
| 16 | 1-228 | 0-960 | 0-921 | 0-736 | 0-563 | 0-460 |
| 17 | 1-382 | 1-080 | 0-940 | 0-809 | 0-635 | 0-560 |
| 18 | 1-595 | 1-200 | 1-116 | 0-907 | 0-712 | 0-683 |
| 19 | 1-732 | 1-350 | 1-300 | 1-010 | 0-794 | 0-750 |
| 20 | 1-920 | 1-400 | 1-340 | 1-120 | 0-880 | 0-785 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 316 circle offers a number of advantages, including excellent corrosion resistance, especially against chloride and salt water, making it ideal for marine, chemical and high-arm environmental Snakes high tensile strength, durability and the ability to withstand extreme temperatures to ensure long-term performance . Its excellent weldability and formability make it easy to manufacture in a variety of shapes. SS 316 is non-reactive, ensuring hygiene and safety in industries such as food processing and pharmaceuticals. Additionally, it resists pitting, crack corrosion and oxidation, resulting in lower maintenance costs and longer durability under extreme conditions.
Thanks to its outstanding corrosion resistance, heat endurance, and hygienic properties, Stainless Steel 316 CircleName is widely utilized across various industries. It’s commonly found in marine settings, chemical processing facilities, food and beverage machinery, and pharmaceutical production systems. These circles are also used in heat exchangers, pressure vessels, kitchen equipment, architectural features, and precision industrial components. Their capability to withstand chloride-rich environments makes them ideal for coastal and offshore structures. Whether for fabrication, machining, or decorative uses, Stainless Steel 316 CircleName components provide durable and dependable performance even in the most challenging conditions.
