Nizar Sheetsandplates, located in Amman, Jordan, stands out as a top-notch manufacturer and supplier of high-performance metals, with a special focus on Hastelloy X Sheets and Plates. Known for their precision engineering and outstanding quality, Nizar Sheetsandplates caters to industries that require exceptional corrosion resistance and high-temperature strength. With cutting-edge facilities and a dedication to excellence, the company guarantees that every Hastelloy X product adheres to strict international standards. Trusted by clients in the chemical processing, aerospace, and power generation sectors, Nizar Sheetsandplates delivers dependable solutions that blend durability, performance, and value, reinforcing its status as a leading supplier in the region.
Hastelloy X Sheets and Plates are primarily made up of nickel (about 47%), along with chromium (22%), iron (18%), molybdenum (9%), and cobalt (1%). This high-nickel alloy showcases remarkable resistance to oxidation and corrosion, especially in high-temperature settings. On the mechanical side, Hastelloy X boasts excellent tensile strength, toughness, and creep-rupture properties, making it perfect for extended exposure to extreme conditions. It maintains its structural integrity even under thermal cycling and stress, and its high weldability and formability allow it to be shaped into various forms without sacrificing performance.
Specifications :ASTM B435 / ASME SB435
Width : 1000mm / 1219mm /1250mm / 1500mm / 2000mm
Length : 2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm.
Thickness : Ranging from 0.3mm to 20mm
Hardness : As per ASME A & NACE MR 175

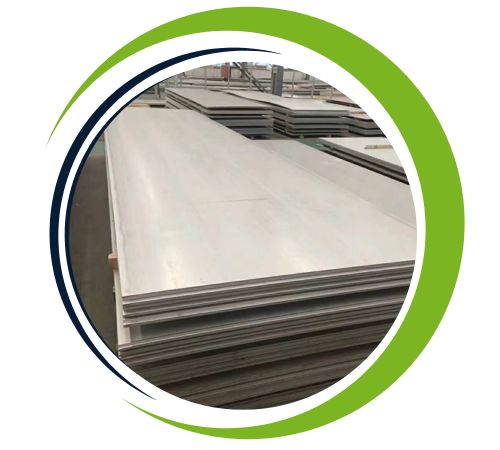

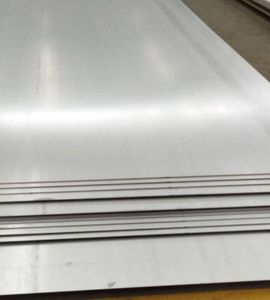

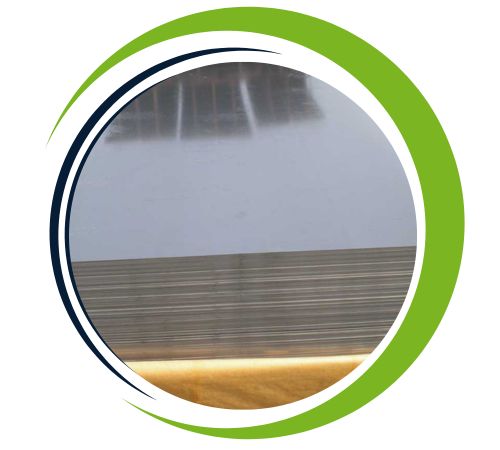

Finish : Hot rolled plate (HR), Cold rolled sheet (CR)
Form : Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
| Grade | C | Mn | Si | Al | Co | Ni | Cr | Fe | Mo | Ti |
| Hastelloy X | 0.05-0.15 | 1.0 max | 1.0 max | 0.50 max | 0.5-2.5 | Remainder | 20.5 – 23 | 17 – 20 | 8 – 10 | 0.15 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.22 g/cm3 | 1355°C (2470°F) | 95 KSI min (655 MPa min) | 35 KSI min (240 MPa min) | 35 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Hastelloy X | 2.4665 | N06002 |
| Dimension (mm) | KG P/M2 |
| 0.5 X 1000 X 2000 | 4.5 |
| 0.7 X 1219 X 3048 | 6.3 |
| 0.9 X 1219 X 3048 | 8.1 |
| 1.2 X 1219 X 3048 | 10.8 |
| 1.6 X 1200 X 3048 | 14.4 |
| 2.0 X 1219 X 3048 | 18.0 |
| 3 X 1200 X 3000 | 27.0 |
| 3.18 X VARIOUS ANN | 28.6 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hastelloy X Sheets and Plates find extensive use in industries that demand high-temperature resistance and corrosion protection. Typical applications include components for gas turbines, furnace parts, heat exchangers, chemical processing equipment, and nuclear reactors. They excel in handling both oxidizing and reducing environments, such as flue gas ducts and chemical reaction vessels. Moreover, Hastelloy X is utilized in aerospace, power generation, and petrochemical industries where durability under intense heat and stress is essential. Its excellent weldability and machinability make it ideal for custom-engineered components, ensuring long-lasting performance.
| Thickness | Alloy | Plate Weight per Unit Area | Density |
| 3/16 inches | Hastelloy X | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | Hastelloy X | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | Hastelloy X | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | Hastelloy X | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | Hastelloy X | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | Hastelloy X | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | Hastelloy X | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | Hastelloy X | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | Hastelloy X | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | Hastelloy X | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | Hastelloy X | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | Hastelloy X | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | Hastelloy X | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | Hastelloy X | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | Hastelloy X | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | Hastelloy X | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
Hastelloy X sheets and plates are widely used in high-temperature applications across various industries. They are ideal for gas turbines, combustion chambers, and jet engine components due to their excellent resistance to oxidation and corrosion at elevated temperatures. Additionally, they are used in chemical processing, including heat exchangers, reactors, and exhaust systems, where high strength and thermal-fatigue resistance are critical. Hastelloy X also serves in aerospace, power generation, and nuclear industries, providing reliable performance in extreme conditions, ensuring durability and longevity in demanding applications.
