Nizar Sheetsandplates is a reputable manufacturer and supplier located in Amman, Jordan, specializing in high-quality Stainless Steel 316Ti Angles designed for high-temperature, corrosion-resistant, and structural applications. Renowned for their precision manufacturing and commitment to customer satisfaction, the company guarantees that each angle adheres to strict international quality standards. With state-of-the-art fabrication facilities and rigorous quality control measures, Nizar Sheetsandplates produces angles that boast exceptional dimensional accuracy, surface finish, and long-lasting performance. Their technical know-how, prompt delivery, and competitive pricing have made them a go-to supplier for the chemical, petrochemical, marine, food processing, and pharmaceutical sectors across Jordan and the broader Middle East.

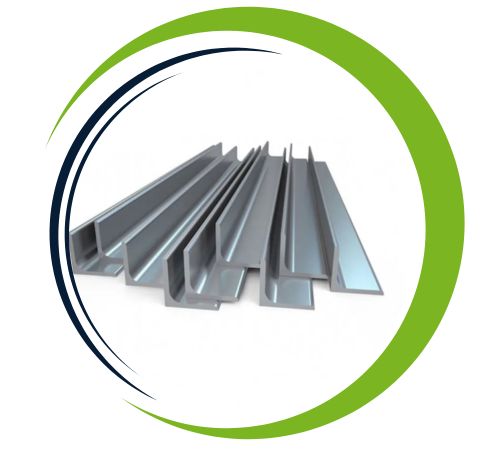

Stainless Steel 316Ti Angle is an austenitic chromium-nickel stainless steel pinned with titanium, offering improved resistance to intergranular corrosion The composition usually contains 16-18% chromium, 10-14% nickel, 2-3 % molybdenum, 0.5% titanium, and very low carbon (<0.08%) and there is a. Mechanical properties include 515 MPa tensile strength, 205 MPa yield strength and 35% elongation. It exhibits excellent strength and can withstand temperatures up to 600°C. The 316Ti angles are ideal for chemical, marine and high temperature environments, providing stability and resistance to oxidation.
| Standard | ASME, ASTM, EN, BS, GB, DIN, JIS, etc |
| Size | 3/4″ THRU 8″ |
| Thickness | 1/8″ thru 5/8″ |
| Type | Stuctural Steel Angle, Bars, Equal, Unequal, L, T, Hot Rolled |
| Grades | 304/304L/304H/310S/316/316L/316H/316TI/317/317L/321/321H/904L |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316 | 0.08 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| SS 316Ti | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| SS 316Ti | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 316Ti Angles are crafted from titanium-stabilized austenitic stainless steel, which contains around 16–18% chromium, 10–14% nickel, and 2–3% molybdenum. The titanium stabilization helps prevent carbide precipitation during welding, significantly improving resistance to intergranular corrosion at elevated temperatures. SS 316Ti is known for its impressive tensile and yield strength, outstanding creep resistance, and high thermal stability. It also offers good formability, weldability, and corrosion resistance, making it an excellent choice for structural and process components that face harsh chemical and thermal conditions.
The stainless steel 316Ti angle provides excellent corrosion resistance thanks to its titanium-tough design especially in high-temperature environments that retains this strength and stability under extreme conditions, and provides it is ideal for industrial marine applications. The alloy resists pitting and crack corrosion, providing durability in high chloride environments. Also, it exhibits excellent weldability and formability, facilitating mass production. Its advanced mechanical properties and thermal resistance make it suitable for pressure molds and chemical processes, resulting in reliable operation and reduced maintenance over time.
| THICKNESS | ||||||
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
Stainless steel 316Ti angles are widely used in applications requiring corrosion resistance and high temperature performance. Their titanium-stable structure prevents sensitivity, making them ideal for chloride exposure and harsh chemicals, such as the chemical, marine and petrochemical industries These angles are used structurally applications, support frameworks and reinforcing components among them due to their excellent mechanical properties and durability Occurs in heat exchangers, pressure vessels and piping systems where there is increased resistance to oxidation and scaling at high temperatures is important.
