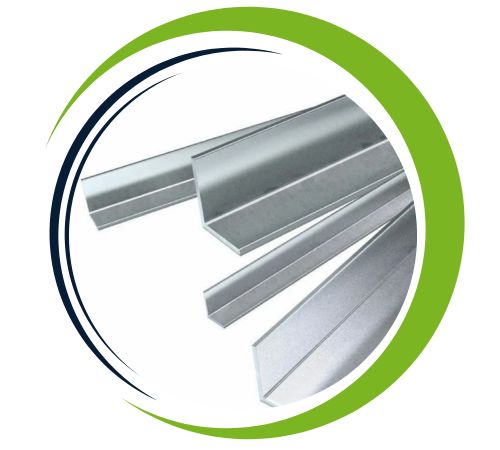

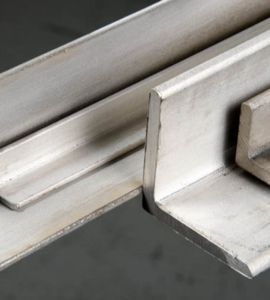

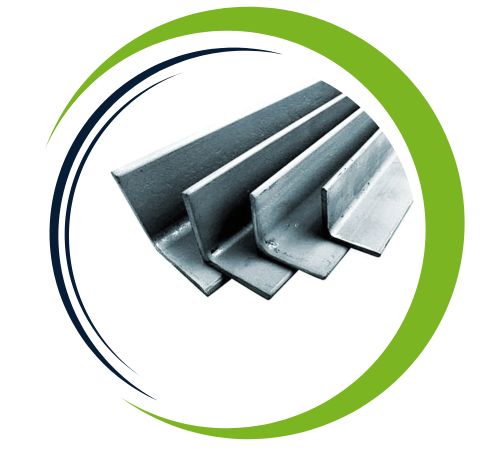

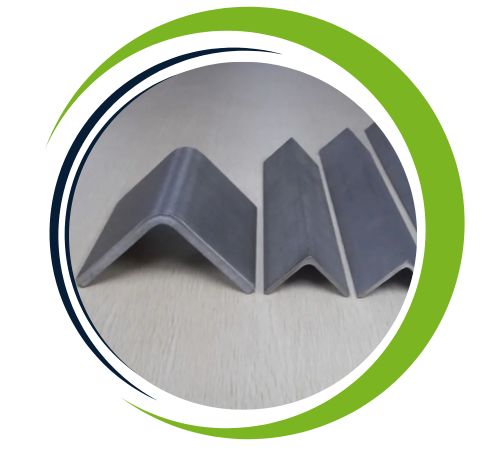

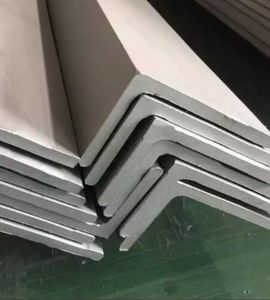

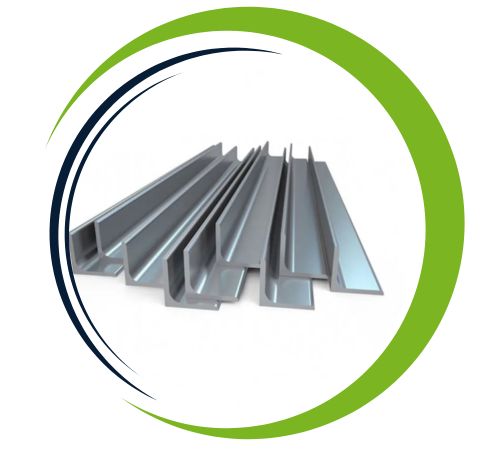

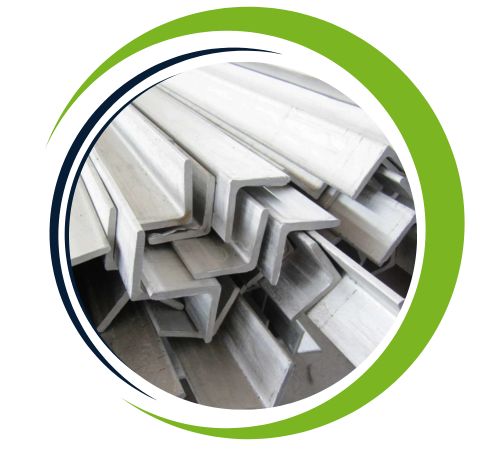

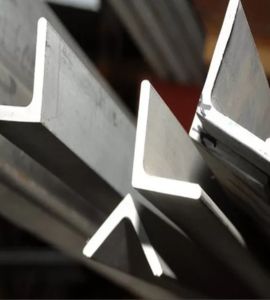

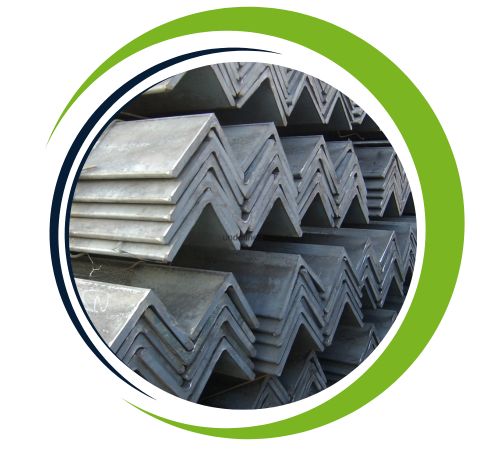

The Stainless Steel 347 Angle is a top-notch, stabilized stainless steel product crafted for situations where intergranular corrosion resistance and high-temperature strength are crucial. Thanks to its niobium content, Stainless Steel 347 boasts impressive stability during welding and when exposed to high temperatures. These angles find their place in industries that prioritize structural reliability, corrosion resistance, and durability. With remarkable mechanical properties and easy fabrication, SS 347 Angles are perfect for construction, petrochemical, and thermal processing settings. Their strong performance and long lifespan make them a go-to choice for tough industrial and structural tasks.
Stainless Steel 347 is made up of chromium (17–19%), nickel (9–13%), and stabilizing elements like niobium and tantalum, along with trace amounts of carbon, manganese, and silicon. This blend boosts its resistance to carbide precipitation and intergranular corrosion. On the mechanical side, SS 347 delivers high tensile and yield strength, excellent creep resistance, and solid toughness, even at elevated temperatures. It remains stable during welding and high-stress situations. The alloy’s outstanding durability, oxidation resistance, and structural integrity make it a great fit for challenging thermal and chemical environments.
| Specifications | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 347 Angle | 5mm to 9mm |
| Thickness | 3.0mm – 120mm |
| Length | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | SS 347 |
|---|---|
| C | 0.08 max |
| Mn | 2 max |
| Si | 1 max |
| P | 0.045 max |
| S | 0.030 max |
| Cr | 17 – 20 |
| Cb | 10xC – 1.10 |
| Ni | 9.0 – 13.0 |
| Fe | 62.74 min |
| Grade | SS 347 |
|---|---|
| Density | 8.0 g/cm3 |
| Melting Point | 1454 °C (2650 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35% |
| STANDARD | SS 347 |
| WERKSTOFF NR. | 1.4550 |
| UNS | S34700 |
| JIS | SUS 347 |
| BS | – |
| GOST | 08Ch18N12B |
| AFNOR | – |
| EN | X6CrNiNb18-10 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nizar Sheets and Plates based in Amman, Jordan, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Stainless steel 347 Angle for excellent corrosion resistance, especially in hot environments and harsh chemicals. Stabilization is made of columbium and tantalum, preventing carbide precipitation and ensuring high intergranular corrosion resistance. This makes it ideal for high-stress applications in the aerospace, petrochemical, and power plant industries. It has good weldability, formability and high heat resistance. Stainless steel 347 provides durability and performance under extreme conditions, making it a reliable choice for construction and industrial applications requiring high corrosion and temperature resistance.
| THICKNESS | ||||||
|---|---|---|---|---|---|---|
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
You’ll find Stainless Steel 347 Angle in a variety of applications, especially in high-temperature chemical processing, refinery equipment, furnace components, heat exchangers, and thermal oxidizers, all thanks to its stability and corrosion resistance. It’s also a popular choice for aerospace parts, exhaust manifolds, boiler casings, and structural supports in high-heat settings. In construction and fabrication, these angles are used in frames, brackets, support structures, and architectural components that need to last. Their excellent weldability and mechanical strength make them ideal for power generation projects.
