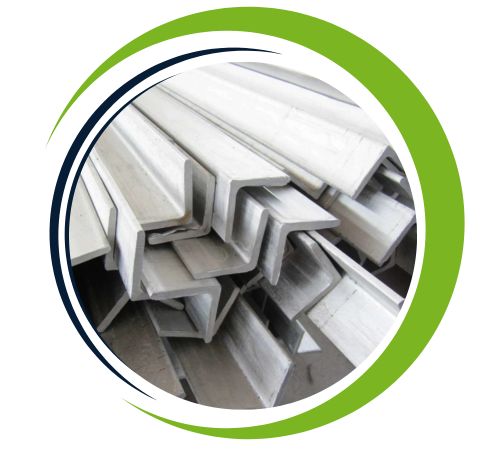

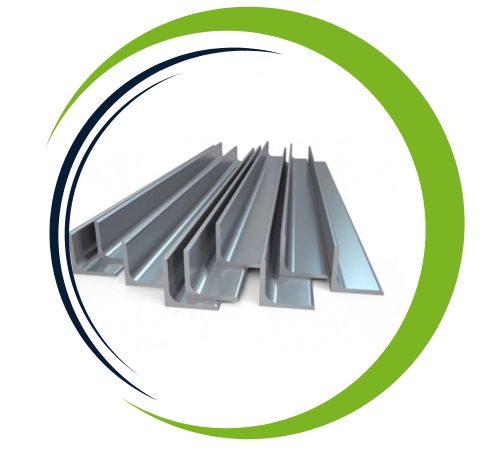

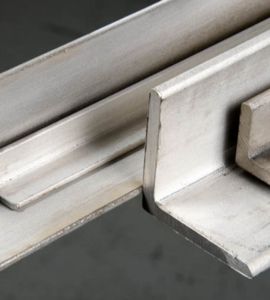

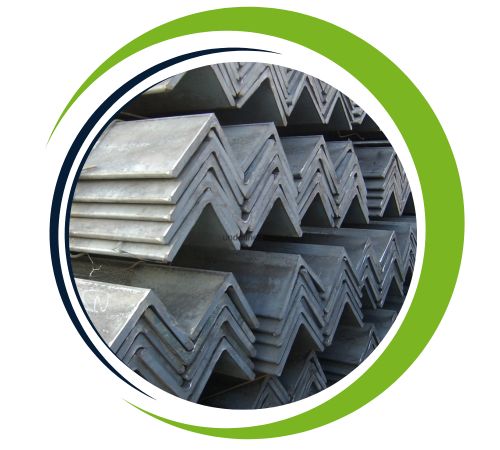

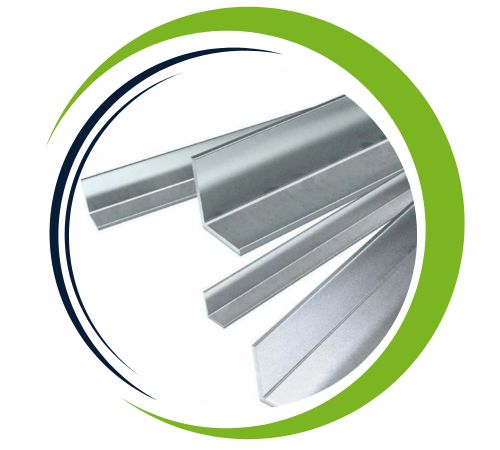

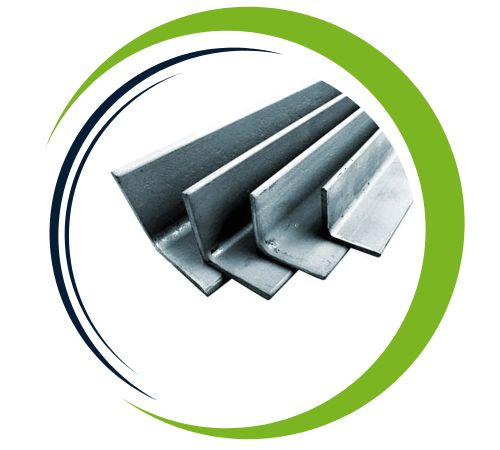

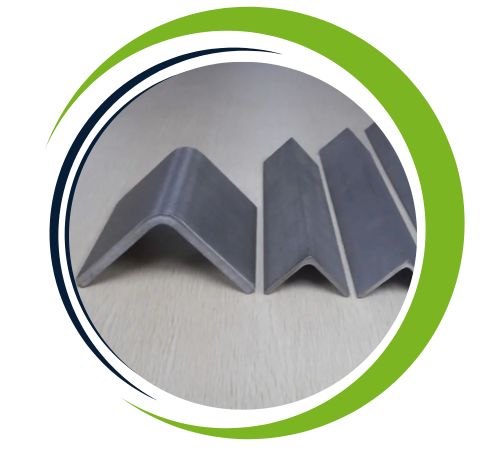

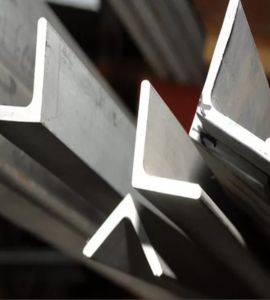

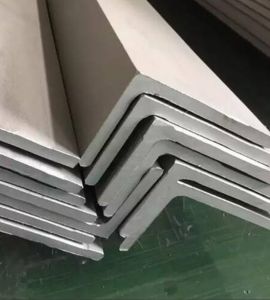

Nizar Sheetsandplates, a top-notch manufacturer and supplier located in Amman, Jordan, specializes in high-performance Stainless Steel 347H Angles that are built to last in tough industrial settings. Crafted from a high-carbon variant of grade 347, these angles offer impressive strength, remarkable heat resistance, and excellent corrosion stability. Nizar Sheetsandplates prides itself on precision manufacturing, ensuring great dimensional accuracy and consistent mechanical properties, making their SS 347H Angles a dependable choice for high-temperature structural and fabrication projects. With a strong focus on quality and customer satisfaction, the company delivers robust products that can handle intense thermal and mechanical stresses across a variety of applications.
Stainless Steel 347H Angle is composed of 17–19% chromium, 9–13% nickel, and is stabilized with niobium to prevent carbide precipitation. The “H” grade features a higher carbon content, which enhances its strength at high temperatures and improves creep resistance. It boasts excellent mechanical properties, including high tensile and yield strength, good toughness, and reliable stress-rupture performance even under elevated temperatures. This alloy is also highly resistant to oxidation and intergranular corrosion, even with continuous thermal exposure. Its stability during welding and forming processes makes it perfect for fabrications that require strength and durability in extreme heat conditions.
| Specifications | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 347 Angle | 5mm to 9mm |
| Thickness | 3.0mm – 120mm |
| Length | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | C | Mn | Si | P | S | Cr | Cb | Ni | Fe |
| SS 347 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 20.00 | 10xC – 1.10 | 9.00 – 13.00 | 62.74 min |
| SS 347H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 8xC – 1.10 | 9.0 -13.0 | 63.72 min |
| Grade | Density (kg/m3) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | |||
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 347 | 8000 | 500 | 720 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 |
| 347H | 8000 | 500 | 720 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN |
| SS 347 | 1.4550 | S34700 | SUS 347 | 08Ch18N12B | X6CrNiNb18-10 |
| SS 347H | 1.4961 | S34709 | SUS 347H | – | X6CrNiNb18-12 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nizar Sheets and Plates based in Amman, Jordan, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Stainless steel 347H angle provides exceptional resistance to high temperature oxidation and corrosion, making it ideal for use in harsh environments, such as chemical processing and electrical equipment Even on its own It maintains and sustains mechanical properties share. Stainless steel 347H is also resistant to intergranular corrosion, ensures durability in high-pressure applications, and is commonly used in applications requiring high-temperature operation and system integrity.
| THICKNESS | ||||||
|---|---|---|---|---|---|---|
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
Stainless Steel 347H Angles find their place in a variety of applications that require outstanding strength and thermal stability. They are commonly used for furnace supports, boiler frames, heat exchanger structures, and high-temperature processing equipment. In petrochemical plants, these angles are essential for piping supports, reactors, and heater tubes. They also excel in exhaust systems, power generation components, and refineries where high-heat exposure is a regular occurrence. Their exceptional properties make them a go-to choice for demanding environments.
