Nizar Sheetsandplates is a reputable manufacturer and supplier of Stainless Steel 440C Sheets and Plates based in Amman, Jordan. We pride ourselves on delivering top-notch stainless steel products designed for high-wear and high-strength applications. SS 440C is a martensitic stainless steel celebrated for its remarkable hardness, outstanding abrasion resistance, and impressive mechanical strength after heat treatment. Our 440C sheets and plates undergo rigorous quality control to guarantee precision, a superb surface finish, and long-lasting durability. Various industries throughout Jordan trust our Stainless Steel 440C Sheets and Plates for challenging environments that demand exceptional toughness, rigidity, and extended service life.
Stainless Steel 440C Sheets and Plates are composed of 16–18% chromium, 0.95–1.20% carbon, along with manganese, silicon, and trace elements, with iron as the primary base. This high-carbon martensitic stainless steel achieves extraordinary hardness, reaching up to 58–60 HRC when heat-treated. SS 440C boasts excellent wear resistance, high tensile strength, and good dimensional stability. While its corrosion resistance is moderate compared to austenitic grades, it performs exceptionally well in mild to moderately corrosive environments. The alloy’s superior hardness and toughness make it perfect for precision tools, mechanical components, and high-stress applications.
| Specifications | ASTM A240 / ASME SA240 |
|---|---|
| Width | 1000mm / 1219mm /1250mm / 1500mm / 2000mm |
| Length | 2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm |
| Thickness | 0.1mm to 12 mm Thk |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |

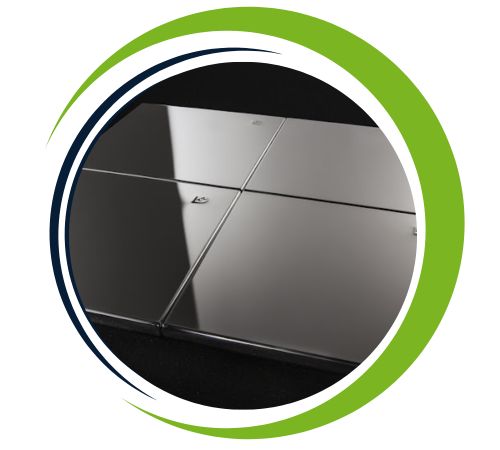

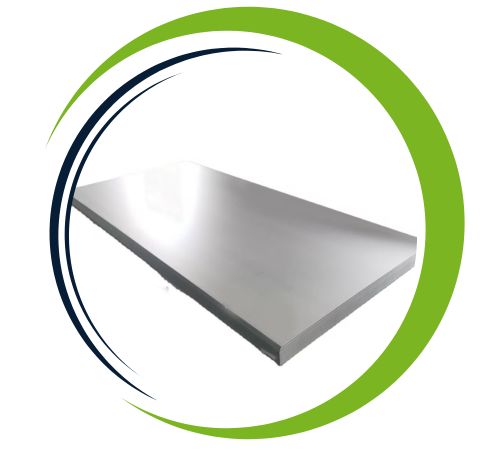

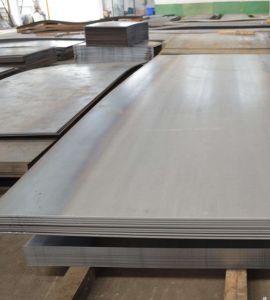

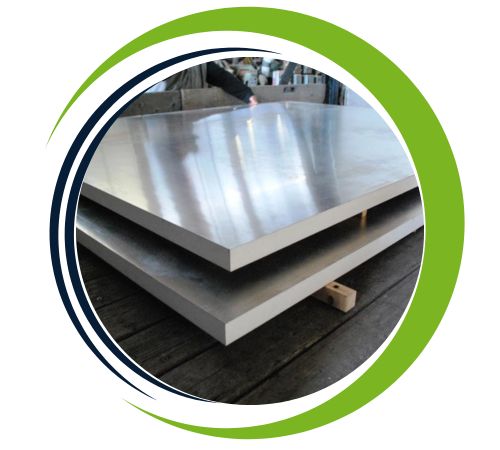

| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 440C | min. max. | 0.95 1.20 | – 1 | – 1 | – 0.04 | – 0.030 | 16.00 18.00 | – 0.75 | – | – |
| Tempering Temperature (°C) | Tensile Strength (MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Rockwell (HR C) | Impact Charpy V (J) |
| Annealed* | 758 | 448 | 14 | 269HB max# | – |
| 204 | 2030 | 1900 | 4 | 59 | 9 |
| 260 | 1960 | 1830 | 4 | 57 | 9 |
| 316 | 1860 | 1740 | 4 | 56 | 9 |
| 371 | 1790 | 1660 | 4 | 56 | 9 |
| Grade | WERKSTOFF NR. | UNS |
| SS 440C | 1.4125 | S44004 |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (mm/m/°C) | Thermal Conductivity(W/m.K) | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nW.m) | |||
| 0-100°C | 0-200°C | 0-600°C | at 100°C | at 500°C | |||||
| 440 C | 7650 | 200 | 10.1 | 10.3 | 11.7 | 24.2 | – | 460 | 600 |
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 440C Sheet and Plates offers many advantages in paper and plate form. It is known for its high durability, which makes it ideal for applications that require damage resistance such as nails, bearings and valves. It has excellent corrosion resistance, especially in water and chemical environments. 440C also provides excellent strength and stability, maintaining its mechanical properties even at elevated temperatures. Furthermore, it is easily machined and manufactured, making it a standard method for precision manufacturing in industries including automotive, aerospace and medical.
Stainless Steel 440C Sheets and Plates find extensive use in industries that demand high hardness, wear resistance, and mechanical durability. They are perfect for crafting bearing races, industrial blades, cutting tools, valve components, surgical instruments, pump parts, and precision mechanical assemblies. In the engineering and automotive sectors, 440C sheets and plates are utilized for high-load, high-wear components that require a long service life and resistance to abrasion. The material’s ability to maintain strength at elevated temperatures further enhances its appeal in demanding applications.
